An exhibit back in the labGravity cavity

2 June 2025

Photo: DESY

It is quite common for research equipment to end up in display cases and exhibition rooms: discarded prototypes, particularly attractive particle detectors or innovative new developments help to explain science and are technological witnesses to the times. However, it is rather rare for exhibits to be dusted off and moved from the glass cabinet back into the research centre. However, one such exhibit has recently begun its second life: a cavity – a cavity resonator that is actually used to accelerate particles – that was previously on display in Genoa is now to help detect gravitational waves and axions.

Gravitational waves are a major topic in astrophysics. They open a new window on the universe because they reveal phenomena that are invisible to conventional telescopes or particle accelerators. Gravitational waves are created when huge masses – such as black holes – collide or stars explode into supernovae. This results in gravitational waves that compress or stretch space-time as they pass through the universe. These subtle variations cannot be detected using conventional detection methods, which is why huge underground structures of lasers and mirrors are currently being used to detect the curvature of space-time through interference. Gravitational waves were detected for the first time in 2015 by the LIGO experiment. But there is another way of detecting gravitational waves in other wavelength ranges: with the help of cavities. In this case, it is not interference patterns but frequency shifts that are supposed to record a passing gravitational wave. A scientific paper published a few years ago triggered a small renaissance in this forgotten field of research, which 20 years ago was still considered the most promising type of detection.

Researchers from DESY and the Cluster of Excellence Quantum Universe at the University of Hamburg as well as from the Fermilab research centre in the USA suddenly became interested in the cavity once produced for this purpose by the Italian research organisation INFN in collaboration with CERN. Accelerator physicist Marc Wenskat and experimental physicist Krisztian Peters jointly lead the project. ‘We enquired in Genoa whether we could use the cavity and, independently of us, Fermilab also contacted them at the same time,’ he explains. ‘We then formed a collaboration between DESY, the University of Hamburg and Fermilab, in which not only accelerator development and particle physics, but also theory and astrophysics play important roles.’ As a first step towards a completely new experiment, they repaired and characterised the exhibition cavity.

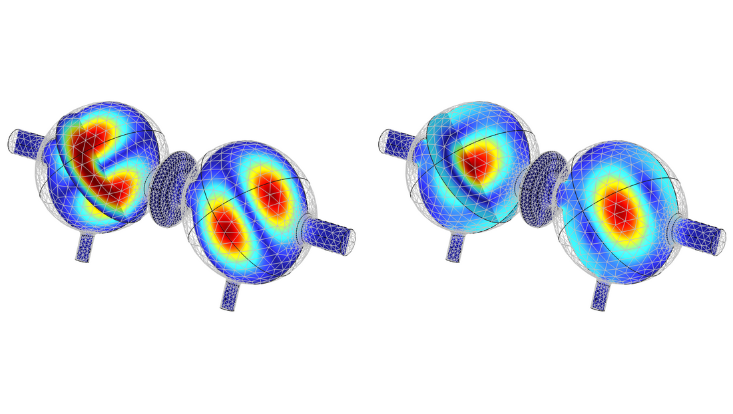

To do this, it had to leave its display case in Genoa and travel to DESY in Hamburg – according to Wenskat, the only place in Germany where all the tests and corrections could be carried out to refurbish the cavity. The great expertise in superconducting high-frequency technology, which is also used for the European XFEL, can likewise be applied to components that look somewhat different from the XFEL accelerator cavities. The material is the same – high-purity niobium, a metal that becomes superconducting at very low temperatures – only the shape is different: the gravitational wave cavity consists of two cells in the shape of a Kinder egg, welded together slightly offset from each other. The detection idea: electromagnetic fields are fed into both cells, which oscillate in phase with each other. If an external influence, such as a gravitational wave, changes the shape of the cavity for a tiny moment, the field inside also changes. To achieve this, the cavity must be protected as well as possible from external influences other than gravitational waves. Knowing it precisely inside and out is another prerequisite.


New life for an exhibit: Krisztian Peters, Marc Wenskat (both DESY and researchers at the
Cluster of Excellence Quantum Universe at the University of Hamburg), and Bianca
Giaccone (FNAL) want to measure gravitational waves with the help of cavities.
Image: DESY, Krisztian Peters

In order to get to know the cavity, the team first repaired its transport damage and then mechanically measured and ‘tuned’ it, i.e. moulded it into a shape that is optimally adjusted to the frequency that is to be maintained in the cavity. ‘You never learn more about a system than when it's not working,’ says Wenskat. With this cavity, the team – currently consisting of the two project leaders, three doctoral students and experts from various groups at DESY and the Cluster of Excellence Quantum Universe – has learnt a great deal about the system in two years.

They learned so much that they were ready for the second step: further measurements and adjustments at very low temperatures. These tests were carried out at Fermilab. The cavity is now back in Hamburg to enable the first scientific measurements to be taken in one to two years' time. ‘You should never say never, but we don't expect to see gravitational waves or axions, to which it is also sensitive, with this system,’ says Peters. ‘Nevertheless, these measurements will be of great importance for the long-term goal.’

The long-term goal is a completely new experiment: a specially constructed new cavity in its own cryostat, a kind of large, ultra-cold refrigerator that can then search for gravitational waves even more efficiently. All measurements and tests on the former exhibition model are steps on the way to ‘SHOGWAVE’ (‘Superconducting cavities for the observation of gravitational waves’). This is the name of the experiment that the team would like to put into operation on the campus at the Science City Hamburg Bahrenfeld in a few years' time.
